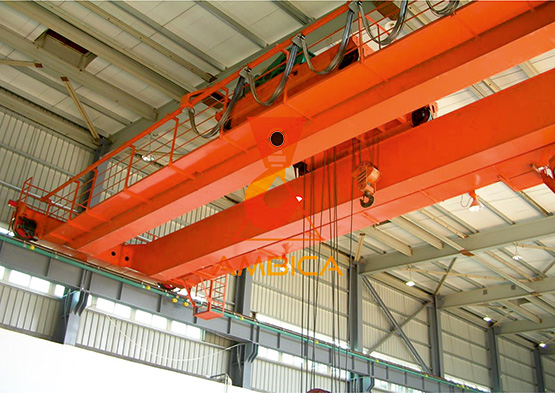

EOT (Electric Overhead Travel) Cranes -

Double Girder Cranes up to 150T capacity

We have comprehensive range of heavy duty Double Girder EOT crane systems of capacity up to 150 tons for various applications in power, nuclear, shipbuilding, steel plant, heavy/general engineering sectors etc. We recommend you the perfect customized solutions after doing an in-depth analysis of your applications, production facility, factory, and material handling requirements.

Features

• Easy to install. Ensures maximum rigidity with a minimum dead weight
• Compact dimensions, low weight, easy to operate and maintain
• Safe and ecological production at every level of our supply chain in compliance with ISO 9001 (Quality)
• Precision flat helical / spur gear units in light alloy housings with case-hardened gears, high- grade surface treatment and permanent oil / grease lubrication
• Safe and reliable hoisting and traveling
• Higher efficiency to save power
• All motions are protected with limit switches to prevent over hoisting & over lowering of hook
• Platform with hand railing for easy, simple & safe maintenance of the crane extended partially or totally along the girder width.

Double Girder and Single Girder Goliath/Gantry Cranes up to 100T capacity

We design and manufacture portal cranes, goliath cranes and Goliath/Gantry Cranes as per our customer requirement for various industrial applications like shipping, construction, power, material handling, water gate handling, etc. Depending on the capacity & application, we design these cranes as single girder or double girder and also as per the requirements of our customers.

Features

• Easy to install. Ensures maximum rigidity with a minimum dead weight
• Compact dimensions, low weight, easy to operate and easy to maintain
• Safe and ecological production at every level of our supply chain in compliance with ISO 9001 (Quality)
• Precision flat helical / spur gear units in light alloy housings with hardened gears, high- grade surface treatment and permanent oil / grease lubrication
• Each drive group is equipped with a motor overload protection
• Safe and reliable hoisting and traveling
• Higher efficiency to save power
• All motions are protected with limit switches to prevent over hoisting & over lowering of hook
• Platform with hand railing for easy, simple & safe maintenance of the crane, extended partially or totally along the girder
• Adequate access ladders to reach to the platforms from ground level
• Strom anchoring.

The modular design of the rope hoist facilitates simple & quick maintenance and repair of individual components, thereby minimizing downtime. Being a crane and Hoists manufacturer we continuously focus on innovation in order to provide the perfect solution to our clients.

Safety and reliability are inculcated into the system to ensure excellent power transmission and braking system. Our wire rope hoists can be used for variety of industrial applications.

Features

• Hoists Rope guide made in two parts from SGI
• Over hoisting and lowering limit switches are operated by movement of rope guide.
• Ground gears made from case hardened alloy steel, long life, less noise and high efficiency.
• Overload limiting device, hence safe operation which avoids damage to motor and complete hoist
• Less hook approach
• Hoisting drum directly mounted to gear box eliminating coupling, intermediate axle and bearing. Minimum number of parts gives minimum maintenance Options available:
• Low headroom
• True vertical lift
• Gravity type limit switch and geared limit switch

Product Overview

We design and manufacture Industrial Pillar and Wall Mounted Jib Cranes are built to consistently high specification confirming as per IS-807 and IS-3177. Slewing Jib Cranes is perhaps one of the most multipurpose pieces of Lifting Equipments. It supports Overhead Cranes on production lines and keeps workstations, machining cells and warehouses in operation.

Being easy to install and having less structural limitations than many other material handling equipment, Pillar Mounted Jib Cranes are used widely in all customer segments, from small workshops to assembly lines, harbors and even nuclear plants.

Features of JIB Cranes:

• Plates: M.S. Gusset Plates / Thick Base Plates give added rigidity to column.
• Mast: is fabricated from Pipe / Rolled Steel section.
• JIB Arm: is fabricated from heavy section I-Beam and triangular truss construction / Plate fabrication.
• Bearing: Double Roller self aligned thrust roller bearing to take care of horizontal and vertical loading as well as radial thrust.
• Swiveling: Through chain at end of JIB Arm or Electric (if required)
• Swiveling Boom: Available with 900, 1800 and 3600.

Wall Mounted & Pillar Mounted Jib Cranes Specifications:

• Capacity : 0.5 Ton to 5 Ton
• Height of Lift : Up to 10 Mtrs.
• Boom Length : Up to 6 Mtrs.
• Rotation : Both Manual and Motorized
• Degree of Rotation : 900, 1800 and 3600
• Class of Duty : II, III, IV
• Hoist Speeds : As per customer requirement

→ All other brought out components shall be as per the IS Standards & Application.
